Preserving a Legend: The Power of Remastered Classic VW Wiring Diagrams

​

​

​



For enthusiasts of classic Volkswagen vehicles, the passion for these iconic cars is a labor of love. From the unmistakable silhouette of the Beetle to the adventurous spirit of the Bus, owning and maintaining a vintage VW is a rewarding experience. However, navigating the intricacies of a classic car's electrical system can be one of the most daunting challenges, turning a dream restoration project into a frustrating puzzle. The original wiring, often decades old, is prone to becoming brittle, cracked, and unreliable. To make matters worse, the factory wiring diagrams that were once the go-to resource are often faded, difficult to read, and may have been altered by previous owners over the years [1].

The Challenge of Original Documentation

Original wiring diagrams for classic Volkswagens, while historically significant, present a number of obstacles for the modern restorer. These documents, typically printed on paper, have often degraded over time, making them difficult to decipher. The lack of color-coding in many original diagrams forces enthusiasts and mechanics to spend countless hours tracing wires and attempting to identify circuits, a process that is both time-consuming and prone to error. This is why a complete overhaul of the wiring system is often recommended as the first step in any serious restoration project [1].

A Modern Solution: The Art of the Remastered Diagram

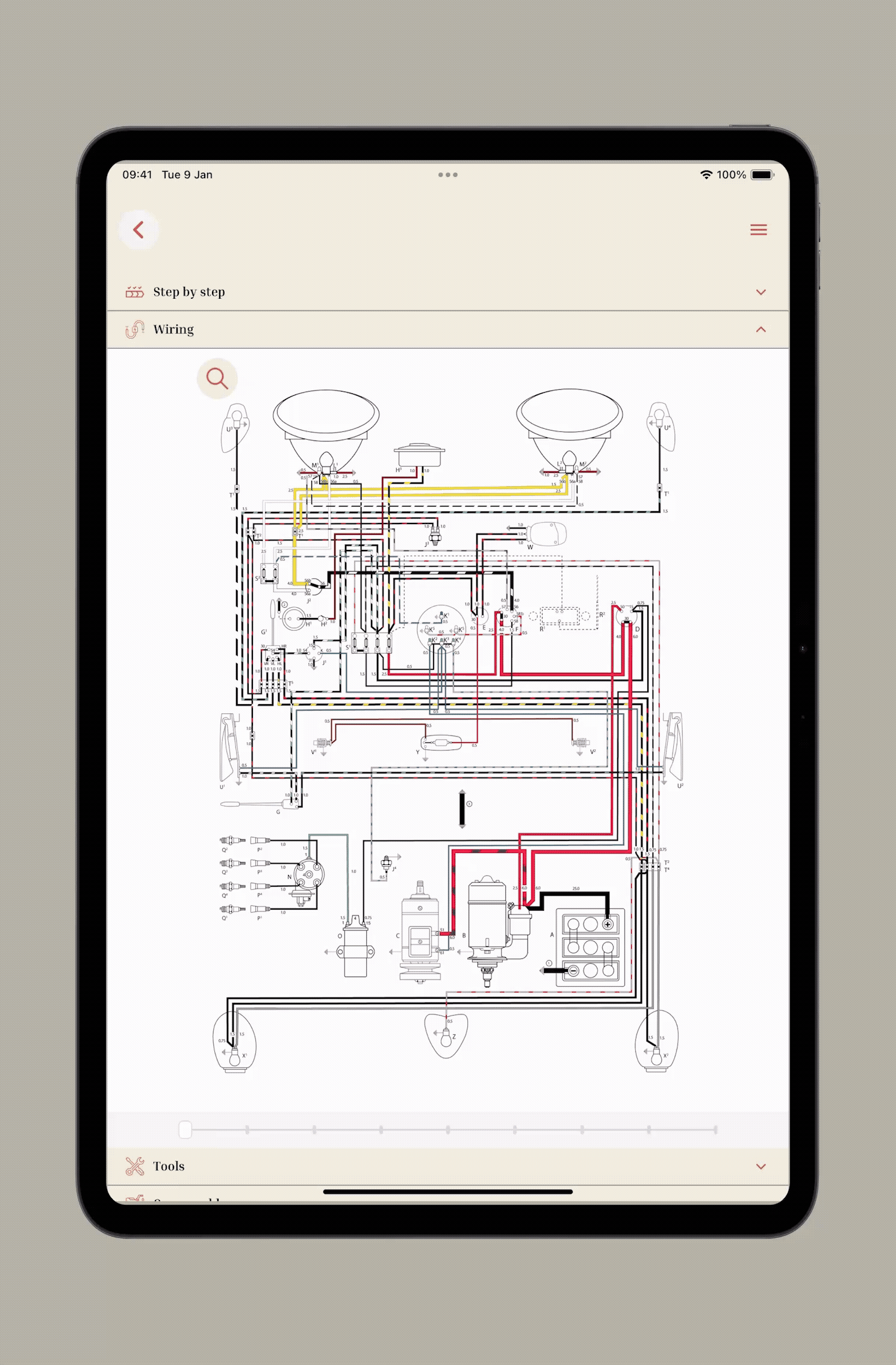

Fortunately, technology has provided a powerful solution to this age-old problem: the remastered digital wiring diagram. These are not simply scans of old documents; they are meticulously recreated, high-resolution schematics that bring clarity and precision to the restoration process. By leveraging modern design software, these remastered diagrams offer a host of benefits that empower both seasoned mechanics and DIY enthusiasts alike.
